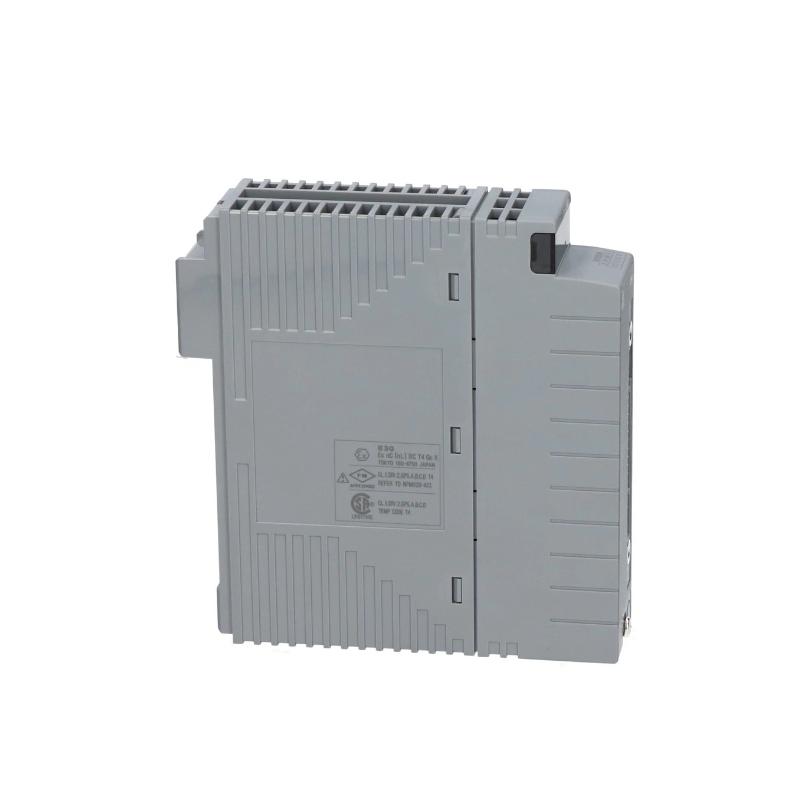

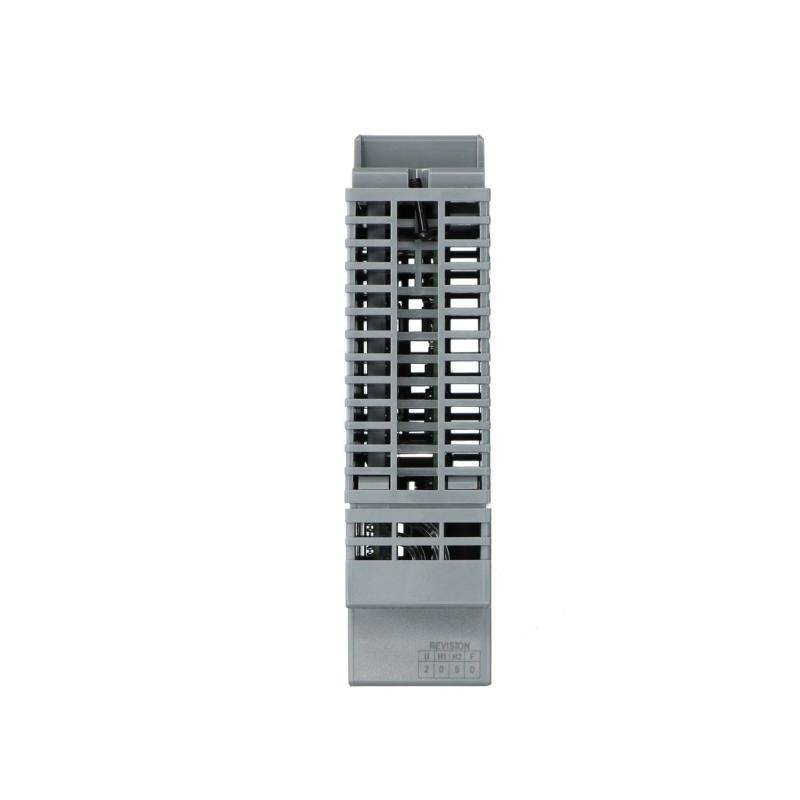

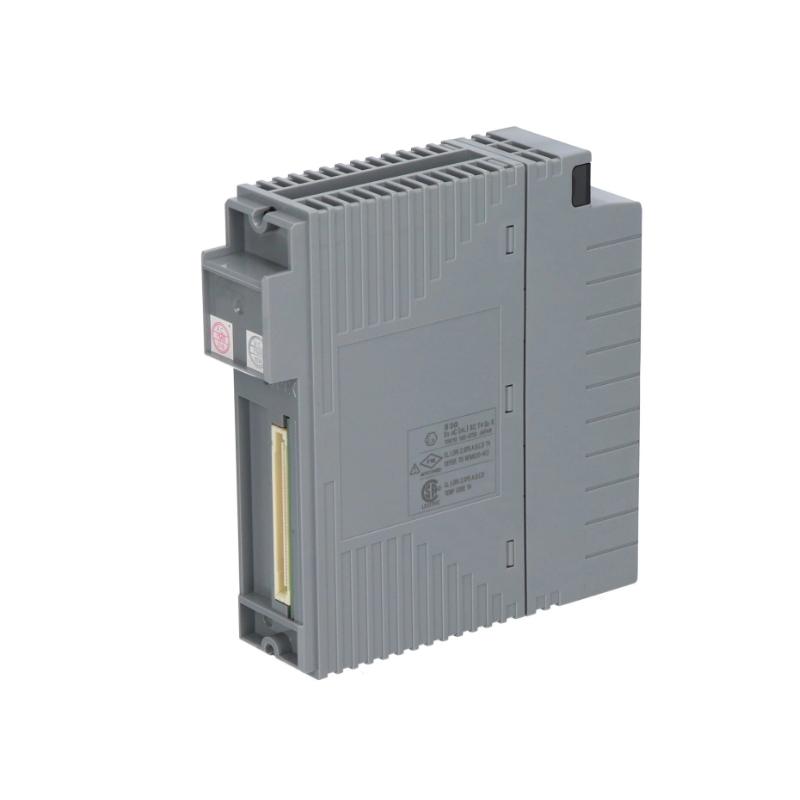

Yokogawa AAT145‑S50 | TC/mV Input Module Quality Selection 12-Month Warranty

Brand：Yokogawa Electric

Item No.：Yokogawa AAT145-S50

Product origin：Japan

Dimensions:107.5 × 130 × 32.8 mm

Weight:0.2 kg

Original import channel supply, support for testing instructions, worry-free after-sales

Wide coverage of models, efficient delivery, welcome to contact us for information!

Product Introduction：

Overview
The Yokogawa AAT145‑S50 is a 16‑channel input module engineered for thermocouple (TC), millivolt (mV), RTD, and potentiometer (POT) signal acquisition. Each channel is fully isolated to ensure high integrity and reliability in industrial control systems.

General Information
Part Number: AAT145‑S50
Brand / Country of Origin: Yokogawa / Japan
Product Type: TC/mV Input Module
Series: AAT145
Application: Precision temperature and low‑voltage signal measurement in distributed control systems

Power Specifications
Supply Voltage: Supplied via I/O rack backplane
Power Consumption: Approx. 350 mA at 5 V DC
Input Signal Types: Thermocouples (J, K, E, B, R, S, T, N), millivolt (‑100 to +150 mV), RTD (Pt100 3‑wire), and potentiometer (100 Ω to 10 kΩ)
Isolation: Channels isolated from system and from each other

Communication & Interface
Interface Type: Rack‑mounted with backplane connection on Yokogawa I/O architecture
Input Channels: 16 independent isolated channels
Diagnostics: Supports per‑channel fault detection, burn‑out detection, and dual‑redundant configurations

Environmental
Operating Temperature: −20 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in enclosure

Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: Approx. 0.20 kg

Our company supplies 100% new and original items, with quotes available instantly.

This product has a clear channel, timely delivery, and a reasonable unit price. It supports discounts based on the purchase volume.
