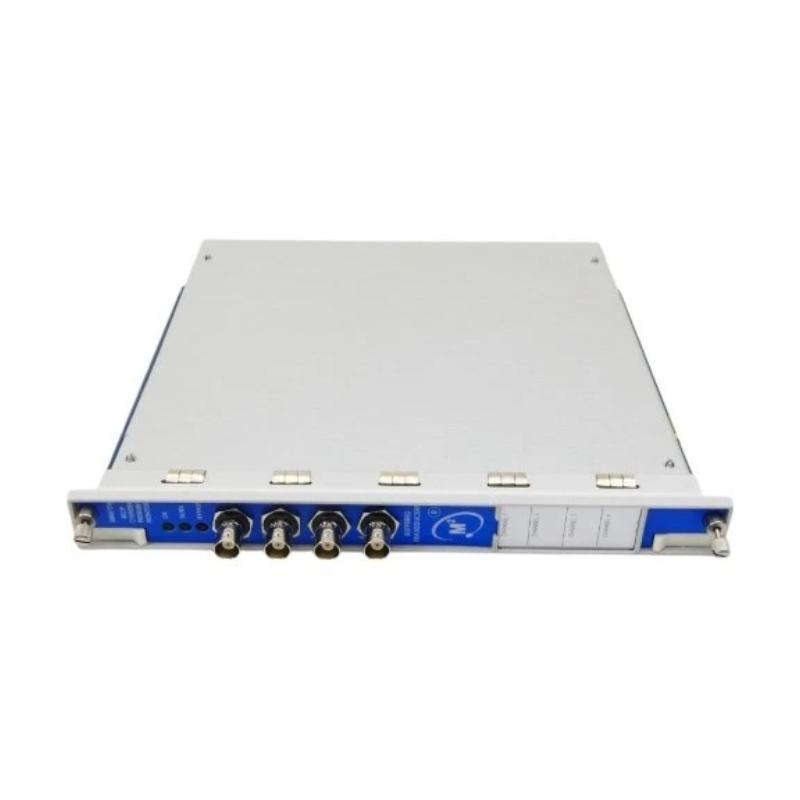

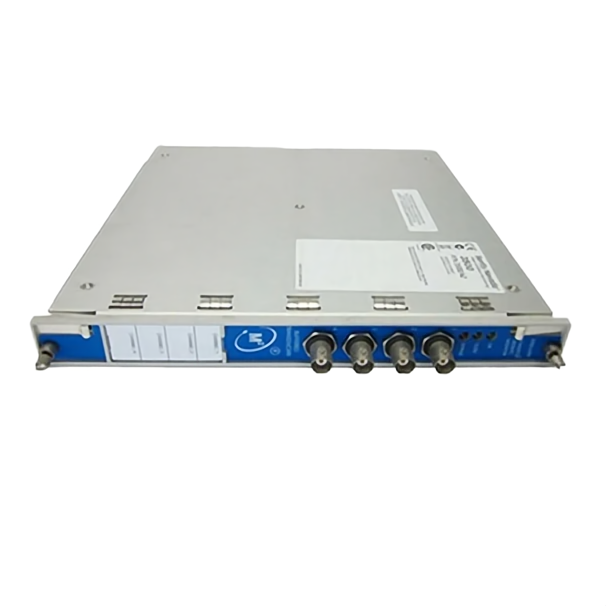

Bently Nevada 3500/64 176449-05 | Dynamic Pressure Monitor Recommended products Fast Shipping!

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/64 176449-05

Product origin：USA

Dimensions:241.3 × 24.4 × 241.8 mm

Weight:0.82 kg

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

Tens of thousands of models are in sufficient stock, and the spot is shipped quickly. Welcome to consult!

Product Introduction：

Overview
The Bently Nevada 3500/64 176449-05 is a four-channel dynamic pressure monitor designed to measure high-temperature, high-frequency pressure transducers. It compares measured variables to configurable alarm thresholds and provides recorder outputs for control system integration.

General Information
Part Number: 176449-05
Brand / Country of Origin: Bently Nevada / USA
Product Type: Dynamic Pressure Monitor
Series: 3500/64

Power Specifications
The monitor accepts standard rack power via the 3500 backplane. It supports high-frequency transducers with input impedance for 3-wire and 2-wire sensors and provides buffered transducer outputs and recorder 4-20 mA outputs. Typical update rate is approximately 100 ms or less.

Communication & Interface

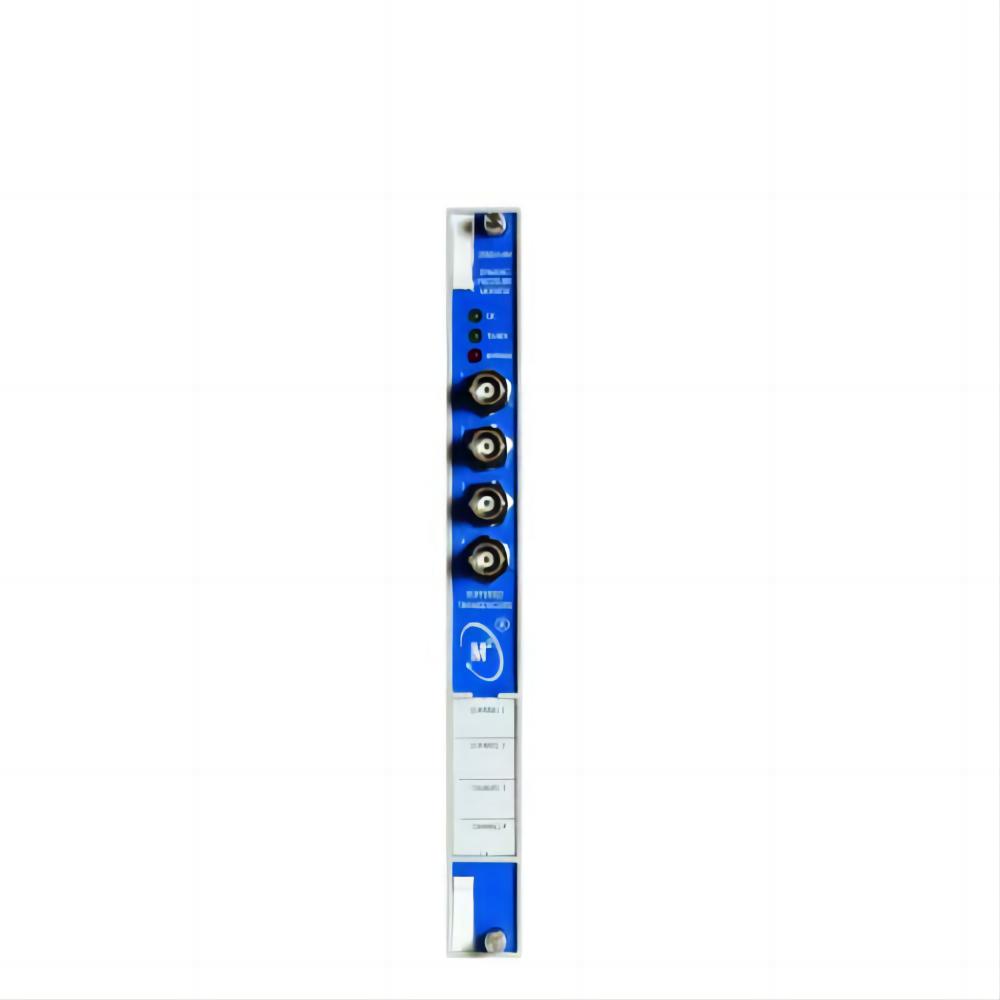

The module connects via the 3500 backplane bus. Each channel has one coaxial buffered transducer output protected against short circuits. A dedicated recorder output (+4 to +20 mA) is provided for each channel. Status LEDs indicate module health and communication (OK, TX/RX, BYPASS).

Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95 % RH, non-condensing
Protection Rating: IP20 when mounted in suitable enclosure

Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm
Weight: 0.82 kg

Authentic brand-new goods, fast shipping, and responsive 24/7 support for quotes.

The product supply is stable, the delivery time is short, and the price is moderate. If there is a bulk demand, a separate quotation can be made.
