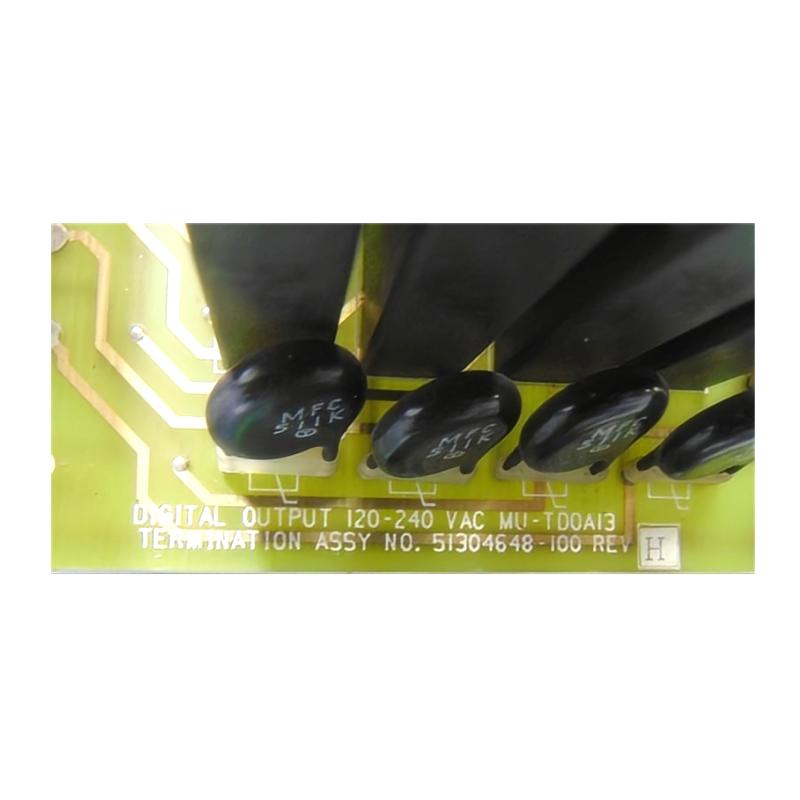

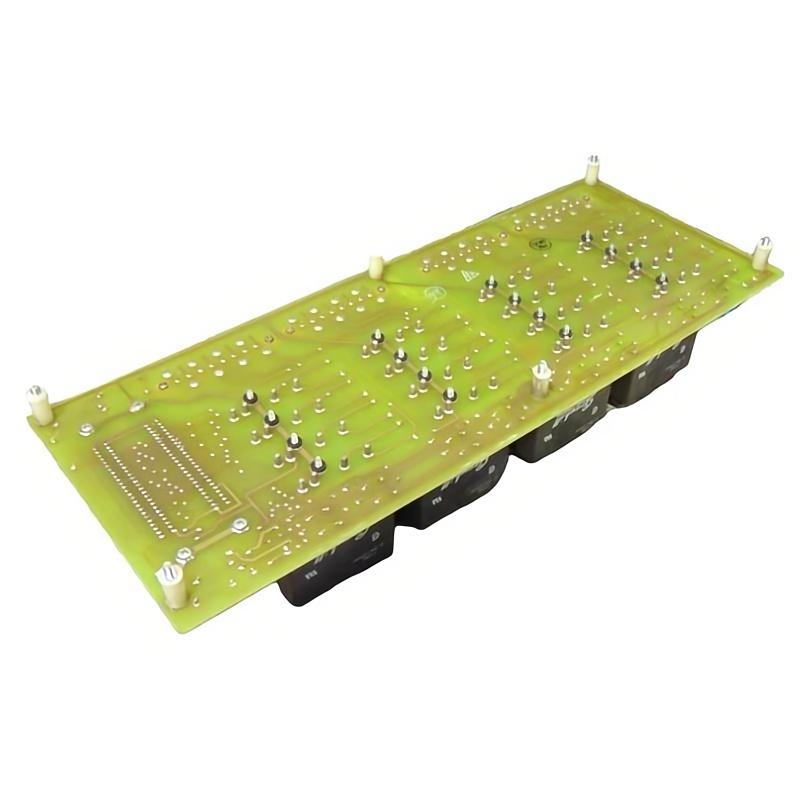

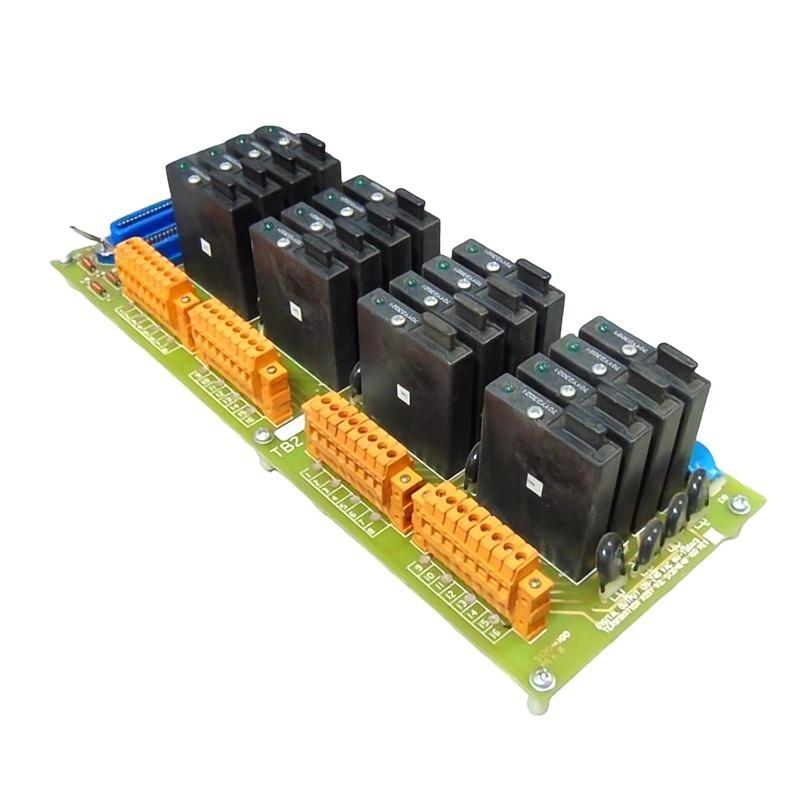

Honeywell MU‑TDOA13 51304648-100 | Digital Output module Trusted supplier Original

Brand：Honeywell DCS

Item No.：Honeywell MU-TDOA13 51304648-100

Product origin：USA

Dimensions:200 × 120 × 50 mm

Weight:0.2 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview
The Honeywell MU‑TDOA13 is a solid‑state digital output module designed to provide reliable 120/240 VAC switching for industrial control systems. It supports up to 16 output channels and is built for rugged, high‑availability applications.

General Information
Part Number: 51304648‑100
Brand / Country of Origin: Honeywell / USA
Product Type: Digital Output Module
Application: 120/240 VAC solid‑state discrete outputs for process control systems

Power Specifications
Output Voltage Range: 120/240 VAC
Number of Channels: 16 solid‑state outputs
Load Capacity: Each channel designed for typical industrial loads (solid‑state relay switching)
Protection: Includes diagnostics and fault‑monitor circuitry to ensure safe operation

Communication & Interface
Interface Type: Backplane I/O rack installation compatible with Honeywell DCS I/O architecture
Signal Connections: Terminal connections for each output channel with status indication
Diagnostics: Module provides channel fault detection and feedback to the host I/O subsystem

Environmental
Operating Temperature: 0 °C to +60 °C (typical industrial range)
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed inside an enclosed control panel

Dimensions & Weight
Dimensions (L × W × H): Approximate 200 × 120 × 50 mm
Weight: Approx. 0.20 kg
