Product Introduction：

Overview

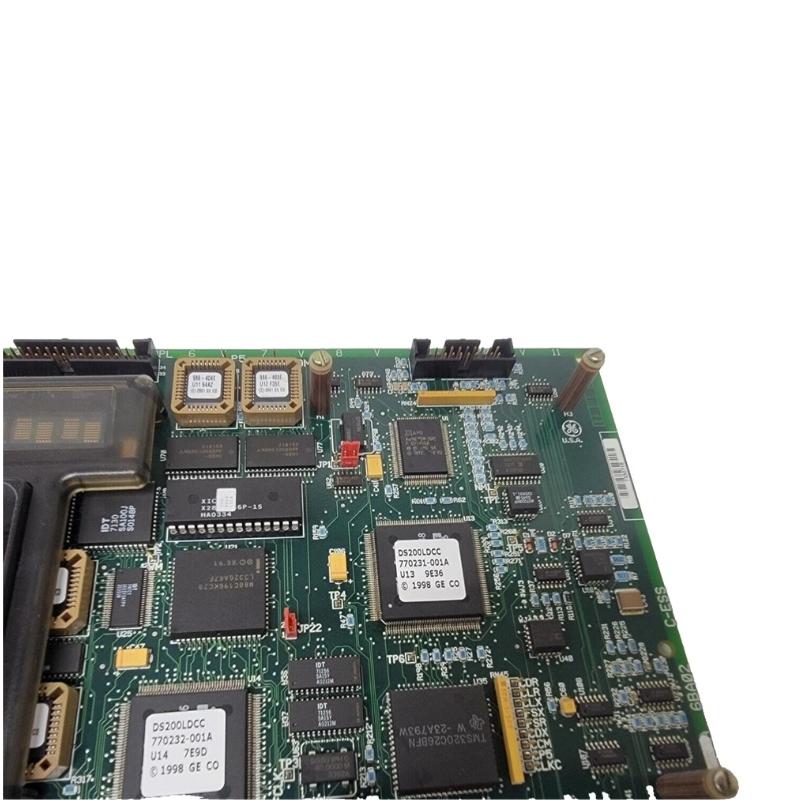

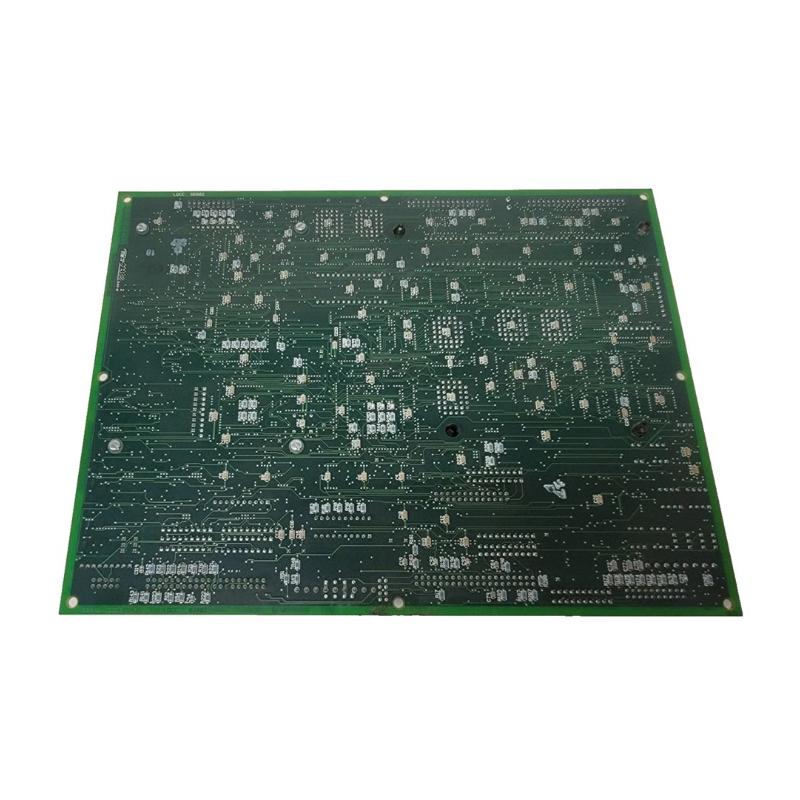

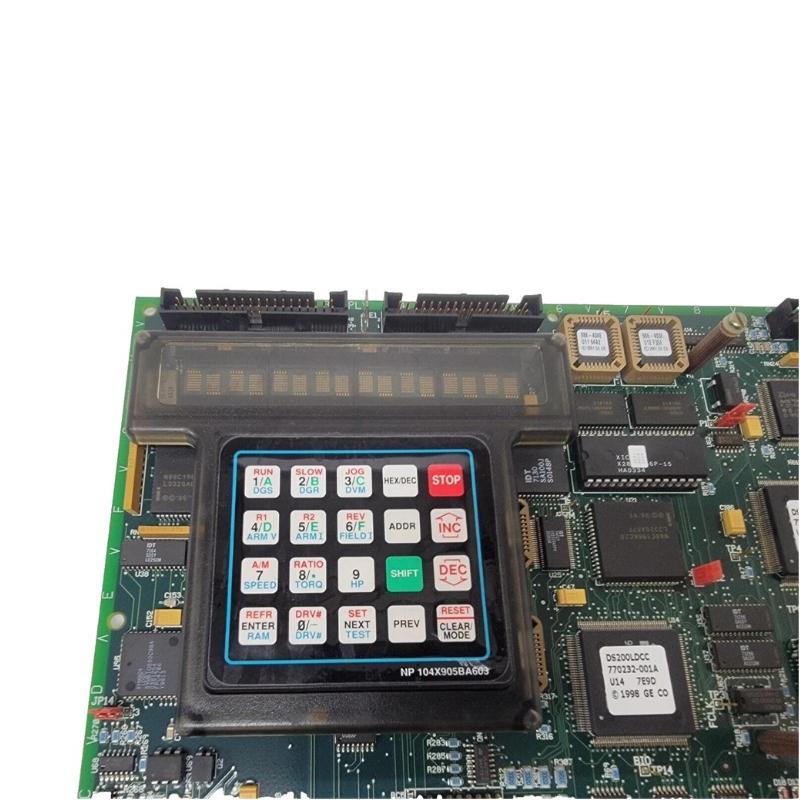

The GE DS200LDCCH1ANA is a drive‑control and LAN‑communication board used in the GE Mark V (DS200) turbine and drive control system. It coordinates motor/drive logic, manages communication tasks, and processes analog and digital signals required for system operations.

General Information

Part Number: DS200LDCCH1ANA

Manufacturer: GE (General Electric)

Series: Mark V / DS200

Type: Drive Control and LAN Communications Board

Functional Acronym: LDCC

Mounting: Installed inside the Mark V control cabinet

Technology: Multi‑processor control board with integrated memory and signal‑processing circuitry

Power Specifications

Supply Voltage: Provided through the Mark V backplane

Power Consumption: Low to medium, typical for multi‑processor control boards

Input Power Source: Backplane interface

Protection: Conformal‑coated board for environmental protection, onboard filtering and surge suppression

Indicators: Onboard LEDs for status and diagnostics

Communication & Interface

Processors: Four onboard microprocessors handling drive logic, LAN communication, and auxiliary motor‑control functions

Memory: Multiple flash PROMs for configuration storage

Signal Processing: Integrated A/D and D/A conversion components

Connectors: Backplane connector plus peripheral connectors for high‑speed data and signal transfer

Interference Handling: Designed with noise‑reducing components for stable operation in industrial environments

I/O & Channels

Analog I/O: Supports VCO and other analog input channels

Digital I/O: Integrated digital inputs/outputs with DMA support for fast data handling

External Load Support: Not applicable (logic‑processing board)

Relay Channels: None

Environmental

Operating Temperature: Suitable for industrial turbine and drive‑control cabinets

Humidity: Up to 95% RH, non‑condensing

Protection: Conformal‑coated PCB for enhanced durability

Dimensions & Weight

Dimensions (L × W × H): 337 × 273 × 64 mm
Weight: 0.454 kg
