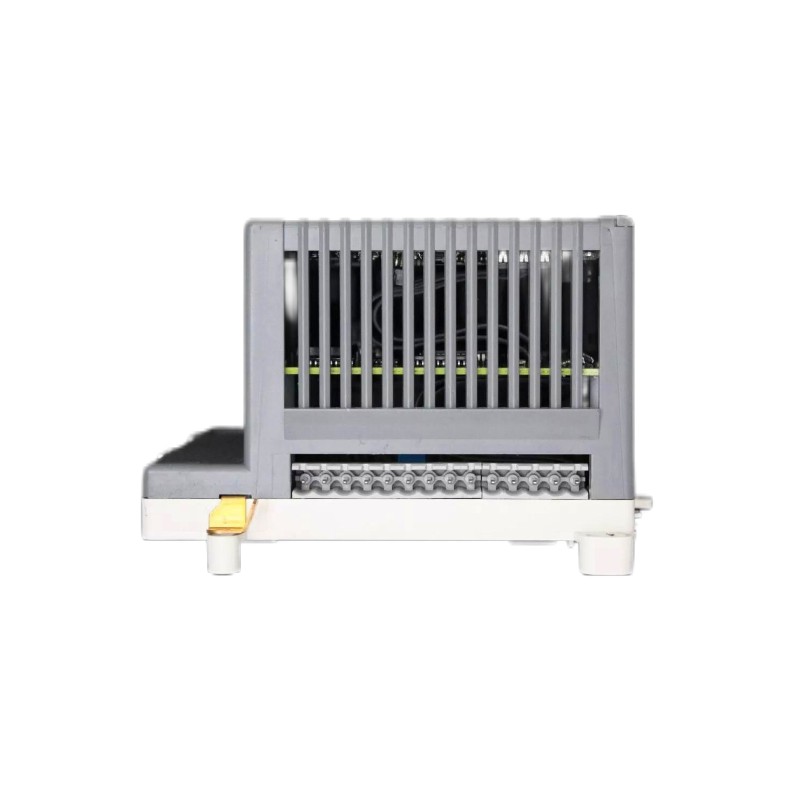

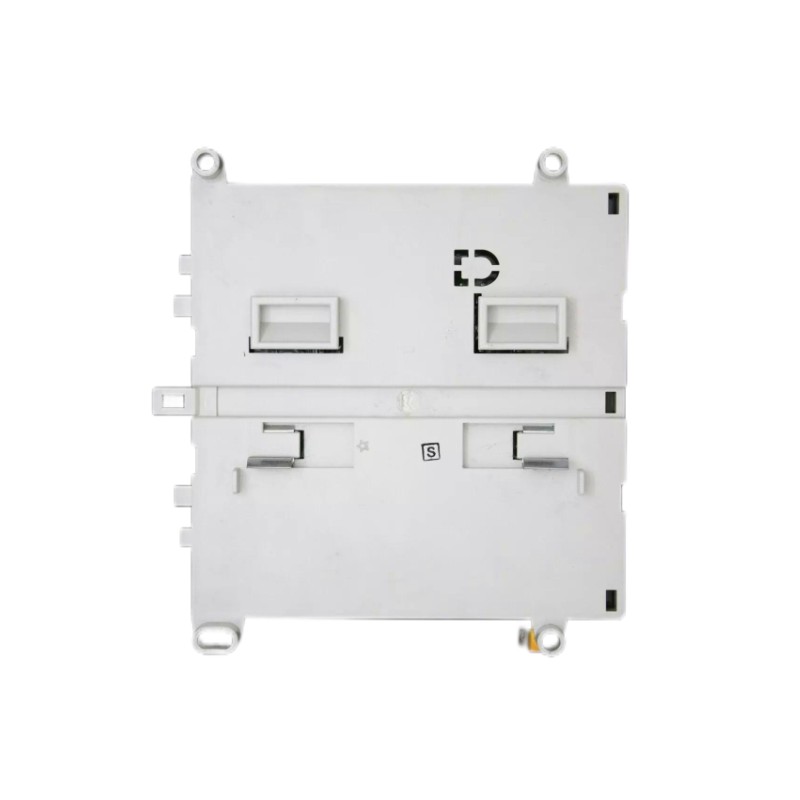

ABB 07DI90‑S GJR5250900R0202 | Safety Digital Input Module Hot Items Fast Shipping!

Brand：ABB PLC

Item No.：ABB 07DI90-S GJR5250900R0202

Product origin：Sweden

Dimensions:85 × 140 × 120 mm

Weight:0.81 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview
The ABB 07DI90‑S is a safety‑rated digital input module designed for the Advant Controller 31 system. It monitors discrete field signals and integrates them into safety logic, enabling reliable functional safety in industrial automation setups.

General Information
Part Number: GJR5250900R0202
Brand: ABB
Country of Origin: Sweden
Product Type: Safety Digital Input Module
Series: Advant Controller 31

Power Specifications
Supply Voltage: 24 V DC
Input Channels: 8 discrete safety‑rated inputs
Protection: Fully isolated inputs and fault monitoring for each channel

Communication & Interface
Interface Type: Bus module connection within the Advant Controller 31 I/O rack
Signal Type: 24 V DC discrete inputs from field devices
Diagnostics: Channel status indicators and system‑level safety diagnostics

Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in enclosure

Dimensions & Weight
Dimensions (L × W × H): 85 × 140 × 120 mm
Weight: 0.81 kg

Brand-new original inventory always available, backed by fast quotation response.

The supply is stable, the quotation is flexible, the delivery response time is short, and project-level procurement bargaining is supported.
