GE DS200QTBAG1ACB | Terminal Panel Recommended products Trusted supplier

Brand：GE Fanuc PLC

Item No.：GE DS200QTBAG1ACB

Product origin：USA

Dimensions:135 × 130 × 35 mm

Weight:0.567 kg

Formal channels, complete testing instructions, and responsive services

Rich stock models support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview

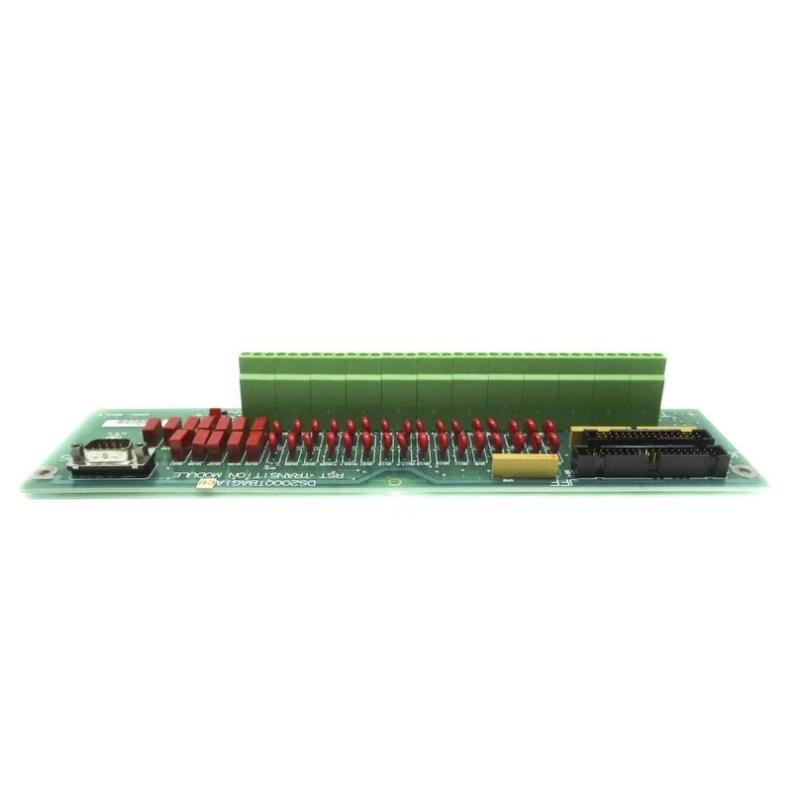

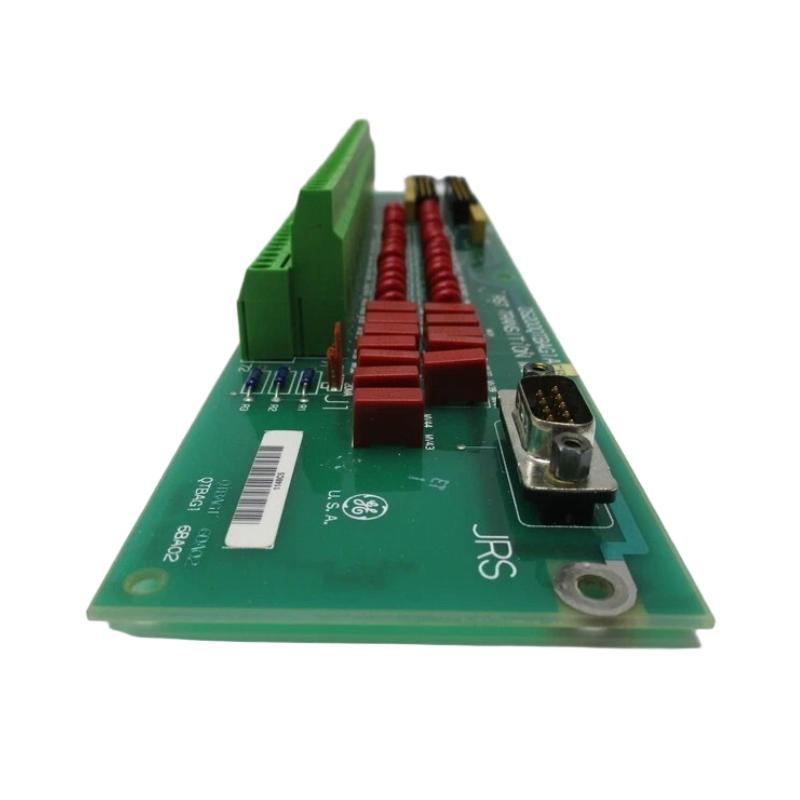

The GE DS200QTBAG1ACB is an RST termination panel used in the GE Mark V / DS200 turbine control system. It provides organized terminal access for magnetic pickups, servo signals, LVDT wiring, and other turbine-side signals, routing them cleanly to the control modules inside the cabinet.

General Information

Part Number: DS200QTBAG1ACB

Manufacturer: GE (General Electric)

Series: Mark V / DS200

Type: Terminal / Termination Panel

Mounting: Installed on the panel backplate or cabinet rack

Technology: Passive signal termination with high-density terminal blocks

Power & Electrical Characteristics

Electrical Role: Routes low-voltage control, measurement, and servo signals

Signal Types Supported: Speed pickups, servo valve commands, LVDT, excitation, flow divider signals

PCB Type: Standard coated board

Communication & Interface

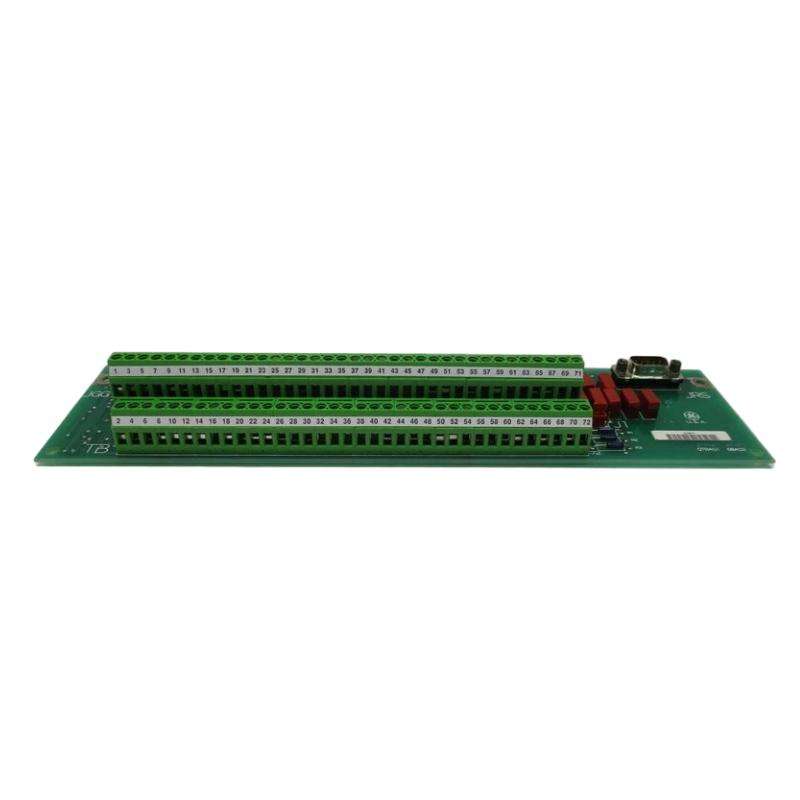

Terminal Blocks: Two high-capacity terminal blocks supporting up to 144 wires total

Connectors:
40-pin ribbon connector
Serial interface connector
Additional multi-pin connector for internal cabinet signal routing

Interface Role: Provides all R/S/T field wiring termination into the Mark V control

Diagnostics: No onboard LEDs or diagnostic components

I/O & Channels

I/O Channels: Provides termination for numerous analog, digital, and speed pickup channels

External Load Support: None (signal-level only)

Environmental

Operating Temperature: Suitable for turbine control cabinet environments

Humidity: Up to 95% RH, non-condensing

Protection Rating: Open-frame PCB; protected by system enclosure

Dimensions & Weight

Dimensions (L × W × H): 135 × 130 × 35 mm

Weight: ~0.567kg

Brand-new originals in stock, available for immediate shipment, customer service online 24/7.

The product is sourced from a compliant import channel, with fast delivery and support for bulk negotiation of discount prices.
