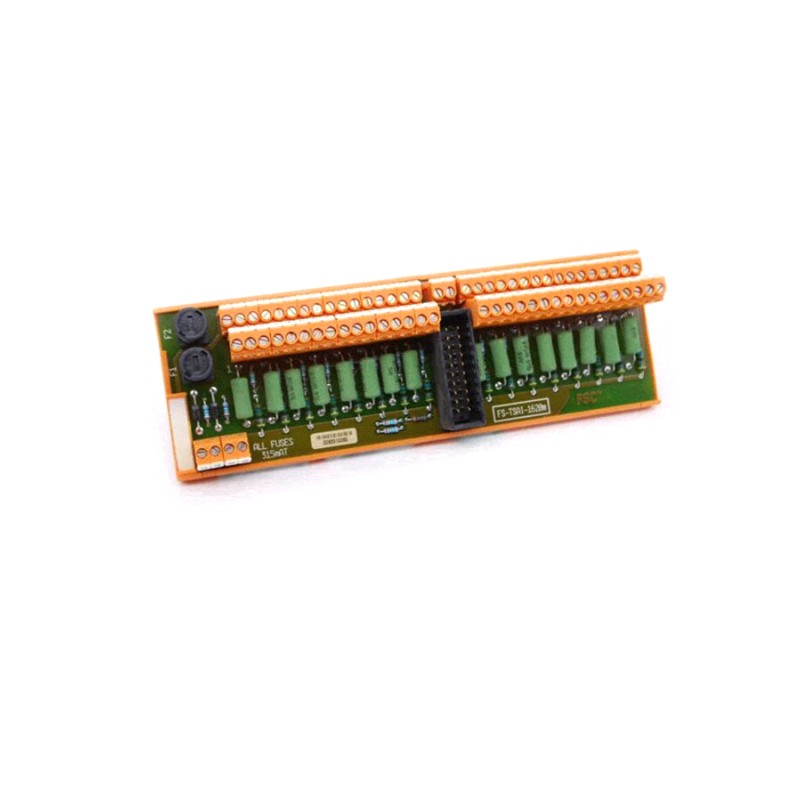

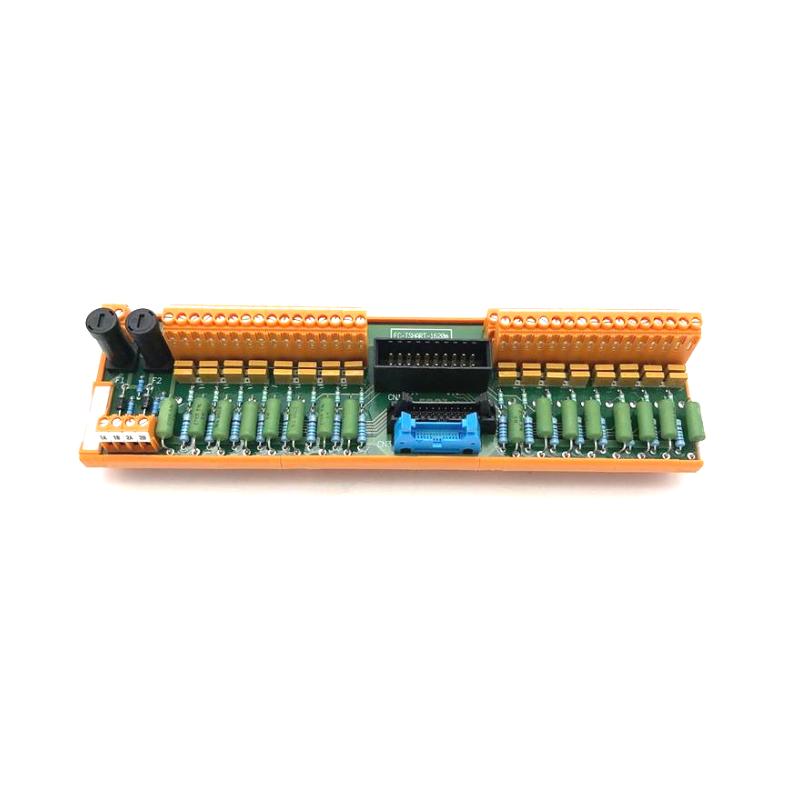

Honeywell FC-TSHART-1620M | Field Termination Assembly Module Rave reviews 12-Month Warranty

Brand：Honeywell DCS

Item No.：Honeywell FC-TSHART-1620M

Product origin：USA

Dimensions:250 × 70 × 60 mm

Weight:3 kg

Formal channel supply, complete information can be checked, and supporting service guarantee

The inventory covers multiple brands and series, and supports fast delivery. Welcome to call for negotiation!

Product Introduction：

Overview

The Honeywell FC-TSHART-1620M is a 16-channel analog input field termination assembly (FTA) module used in Honeywell Safety Manager systems. It accepts 0–20 mA and 4–20 mA signals from field transmitters and provides HART communication for diagnostics and configuration.

General Information

Part Number: FC-TSHART-1620M

Manufacturer: Honeywell

Series: FC (Field/Control Modules)

Type: Field Termination Assembly (FTA) Module

Mounting: Snap-in DIN rail installation

Technology: Analog signal conversion, HART communication, fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low no-load current

Input: Powered from external 24 V DC supply

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for power and fault status

Communication & Interface

Field Interface: Accepts analog signals from transmitters

Bus Coupler Role: Converts and routes field signals to SAI-1620m safe analog modules

Diagnostics: Monitors channel signals and external power supply

Operator Interface: LED indicators for power and fault

Reset Features: Supports soft and hardware reset via Safety Manager

I/O & Channels

Analog Inputs: 16 channels (divided into 2 groups of 8, common 0 V)

Digital Outputs: HART communication for each channel

External Load Support: Can interface with external devices within rated limits

Environmental

Operating Temperature: 0 to 50 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 250 × 70 × 60 mm

Weight: ~ 3.0 kg
