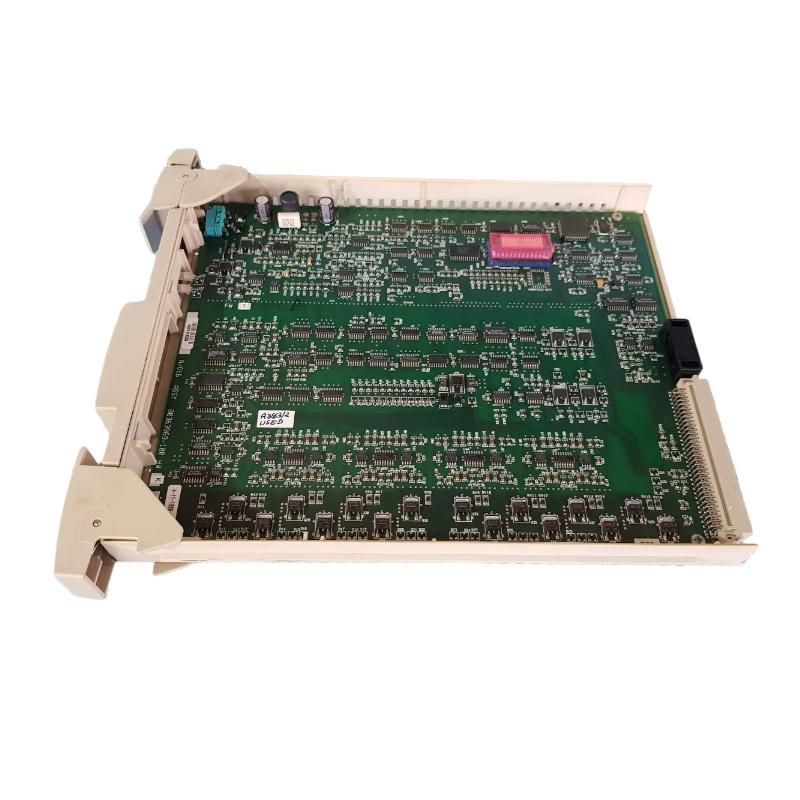

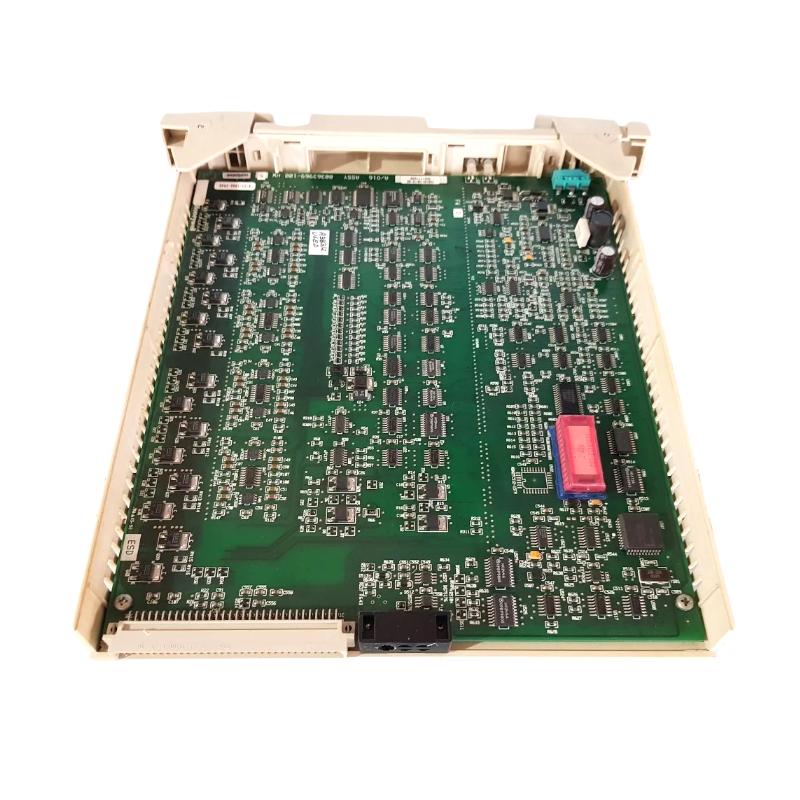

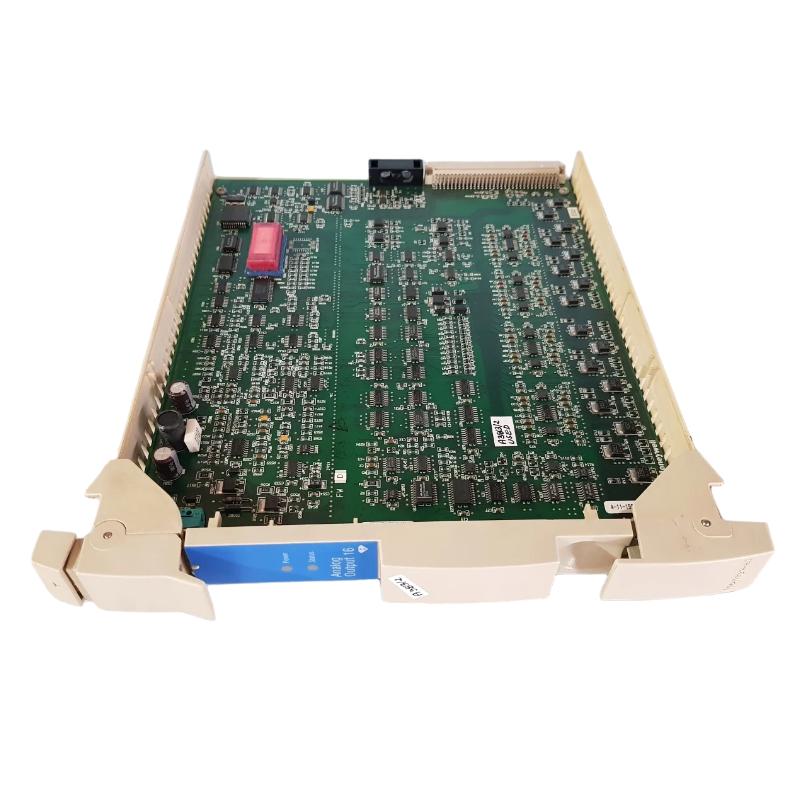

Honeywell MU‑PAOY22 80363969‑100 | Analog Output Processor Module 100% New Unbelievable Prices!

Brand：Honeywell DCS

Item No.：Honeywell MU-PAOY22 80363969-100

Product origin：USA

Dimensions:241.3 × 24.4 × 99.1 mm

Weight:0.55 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

The MU‑PAOY22 is a 16‑channel analog output processor module that provides reliable 4‑20 mA outputs for field devices such as valves and actuators. It ensures accurate signal conversion and consistent process control in industrial systems.

General Information

Part Number: 80363969‑100
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Type: Analog Output Processor Module
Function: Delivers analog outputs to control field actuators and loads within Honeywell DCS systems

Power Specifications

The module provides 4‑20 mA outputs across 16 channels. It maintains output ripple up to 100 mV peak‑to‑peak across a 250 Ω load and output linearity of ±0.05% nominal. Accuracy is ±0.35% full scale at 25 °C and the maximum resistive load is 750 Ω at 20 mA.

Communication & Interface

The module connects via the rack backplane of Honeywell DCS systems. It is compatible with field termination assemblies such as MU‑TAOY22, MU‑TAOY23, MU‑TAOY52, and MU‑TAOY53. It supports channel fault detection, monitoring, and system health reporting.

Environmental

The MU‑PAOY22 operates in temperatures from −40 °C to +70 °C and can be stored at −40 °C to +85 °C. Humidity tolerance is up to 95% RH, non‑condensing. The protection rating is IP20 when mounted in an enclosure and cooling is passive via natural convection.

Dimensions & Weight

Dimensions (L × W × H): 241.3 × 24.4 × 99.1 mm
Weight: 0.55 kg
