Honeywell MU-PAIL02 (51304481-100) | Low-Level Analog Input Trusted supplier

Brand：Honeywell DCS

Item No.：Honeywell MU-PAIL02 51304481-100

Product origin：USA

Dimensions:130 x 35 x 110 mm

Weight:0.45 kg

Original overseas introduction, test assistance instructions support, stable and reliable service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

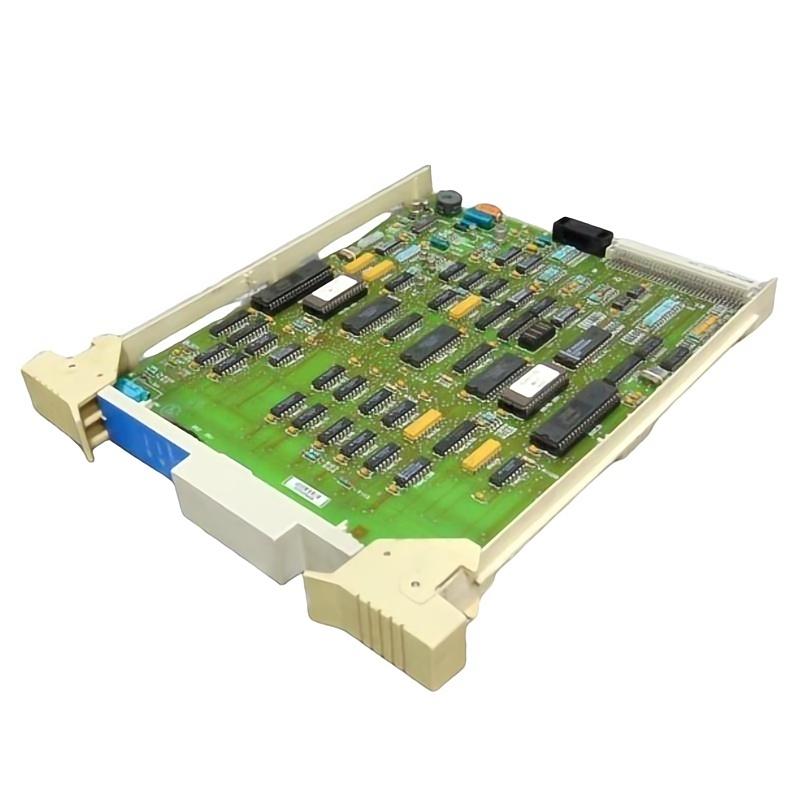

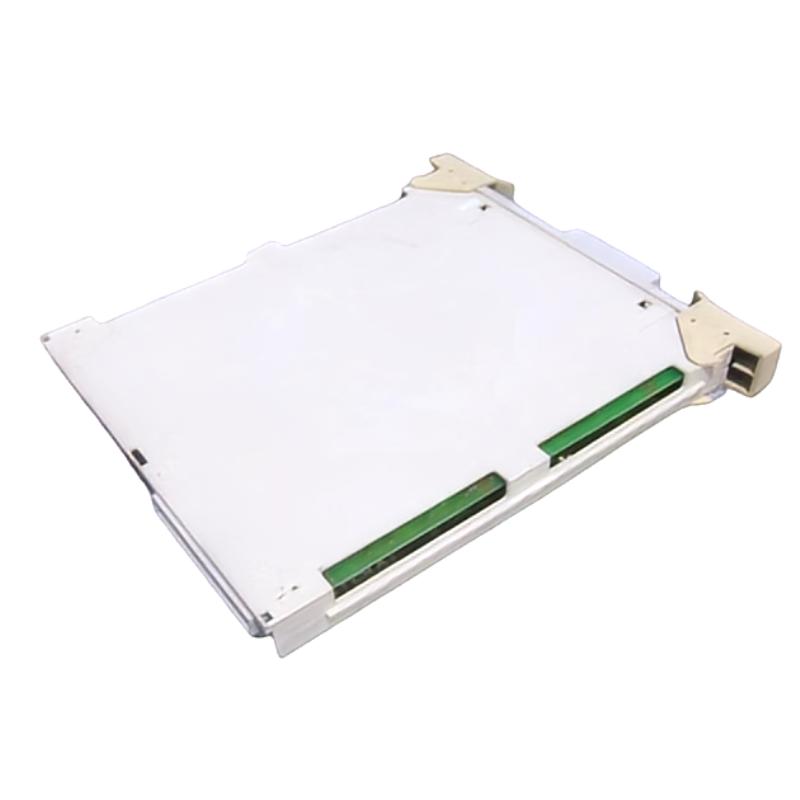

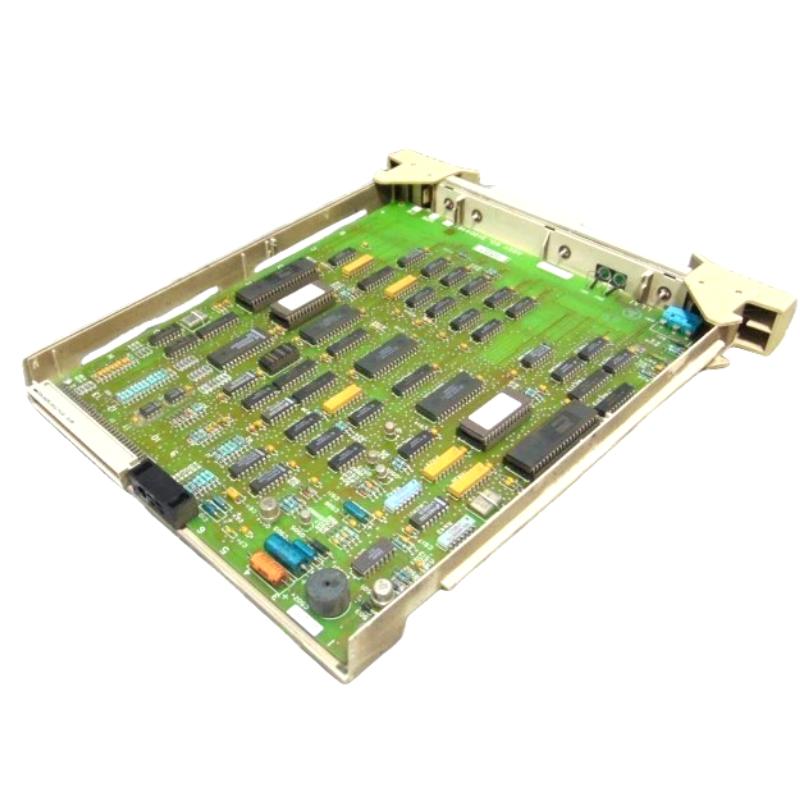

The MU-PAIL02 module (part number 51304481-100) is a low-level analog input processor used in Honeywell UCN/Experion control systems. It handles low-level sensor inputs such as thermocouples and RTDs, providing precision signal conditioning and isolated processing for the control system.

General Information

Part Number: 51304481-100
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Series: MU-PAIL02 (LLAI IOP)
Type: Low-Level Analog Input Processor
Function: Converts low-level analog inputs (RTD, thermocouple) into digital data for the control system.

Power Specifications

Supply Voltage: Provided via system backplane
Input Channels: Supports 8 channels of low-level analog inputs (RTD or thermocouples)
Protection: Channel isolation and input protection for safe operation
Application Range: Thermocouple types B, E, J, K, R, S, T; RTD types Pt100 (DIN/JIS), Ni120 (Edison type 7), Cu10 standard

Communication & Interface

Interface Type: Rack backplane compatible with Honeywell control systems
Input Channel Configuration: 8 analog input channels designed for low‐level sensor signals
Diagnostics: Channel fault detection, module health monitoring
Compatibility: Compatible with Honeywell UCN/Experion I/O architecture and associated field termination assemblies

Environmental

Operating Temperature: Industrial range (typical)
Humidity: Up to 95% RH, non‐condensing
Protection Rating: Suitable for cabinet installation (IP20 rating when installed in enclosure)
Cooling: Passive (natural convection)

Dimensions & Weight

Dimensions (L × W × H): 130 x 35 x 110 mm
Weight: Approximate 0.45 kg
